Body & Construction

  • Carbon-fibre monocoque (one-piece) body and neck
  • Satin finished neck
  • Flamed Maple fretboard with compound radius from 220mm to 370mm (8.7”–14.5”)
  • Scale length of 647.7mm (25.5”)

Hardware

  • Grover locking tuners
  • Grover locking strap buttons
  • Hipshot fixed bridge
  • Stainless steel frets (medium-jumbo)
  • Zero-fret string guide
  • D’addario NYXL strings (any gauge)

Electronics

  • Porter mini-humbuckers
  • Bourns potentiometers
  • Orange-drop tone capacitor
  • Switchcraft 3-way toggle switch
  • Switchcraft jack

String spacing

35.5 mm (1.40")

Nut string spacing

52 mm (2.05")

Bridge string spacing

String height

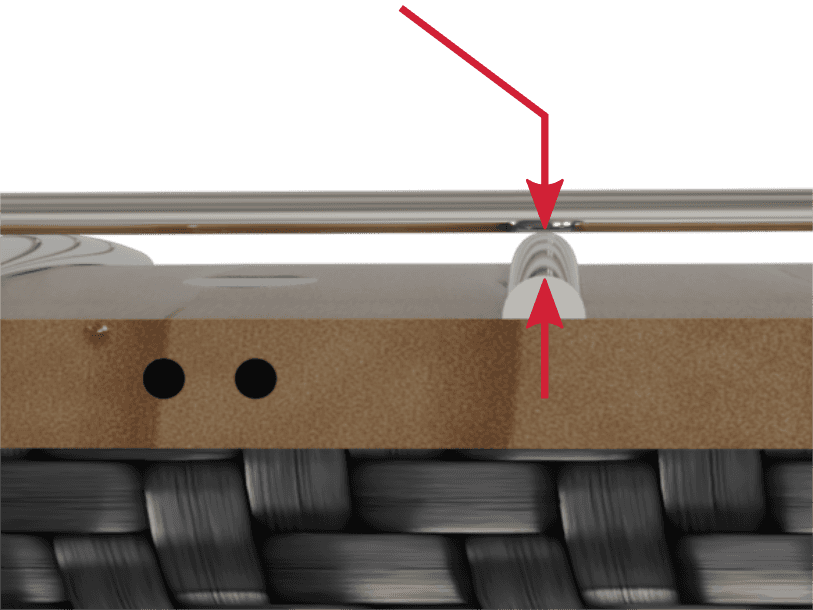

string height ("action")

String height
Four heights are available:
  • Super Low (1.2mm)
  • Regular Low (1.6mm)
  • Medium (2.0mm)
  • High (2.4mm)

Neck shape

Distinctive C-to-D shape moving up the neck.
This provides familiar comfort around the lower frets and dexterous fingering in the upper register.

At fret one:

20 mm (0.79")

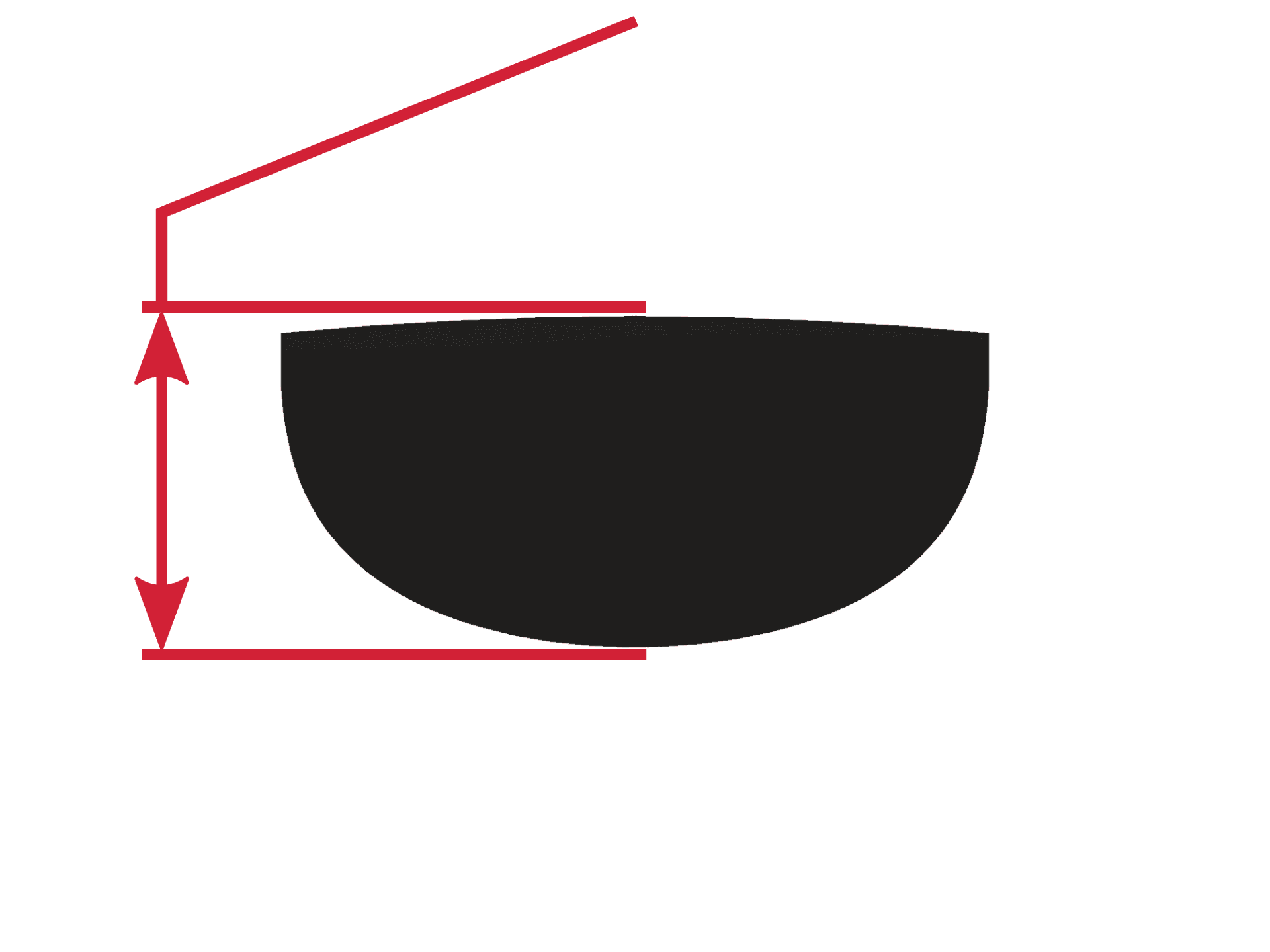

Neck shape at fret 0

At fret twenty:

21 mm (0.83")

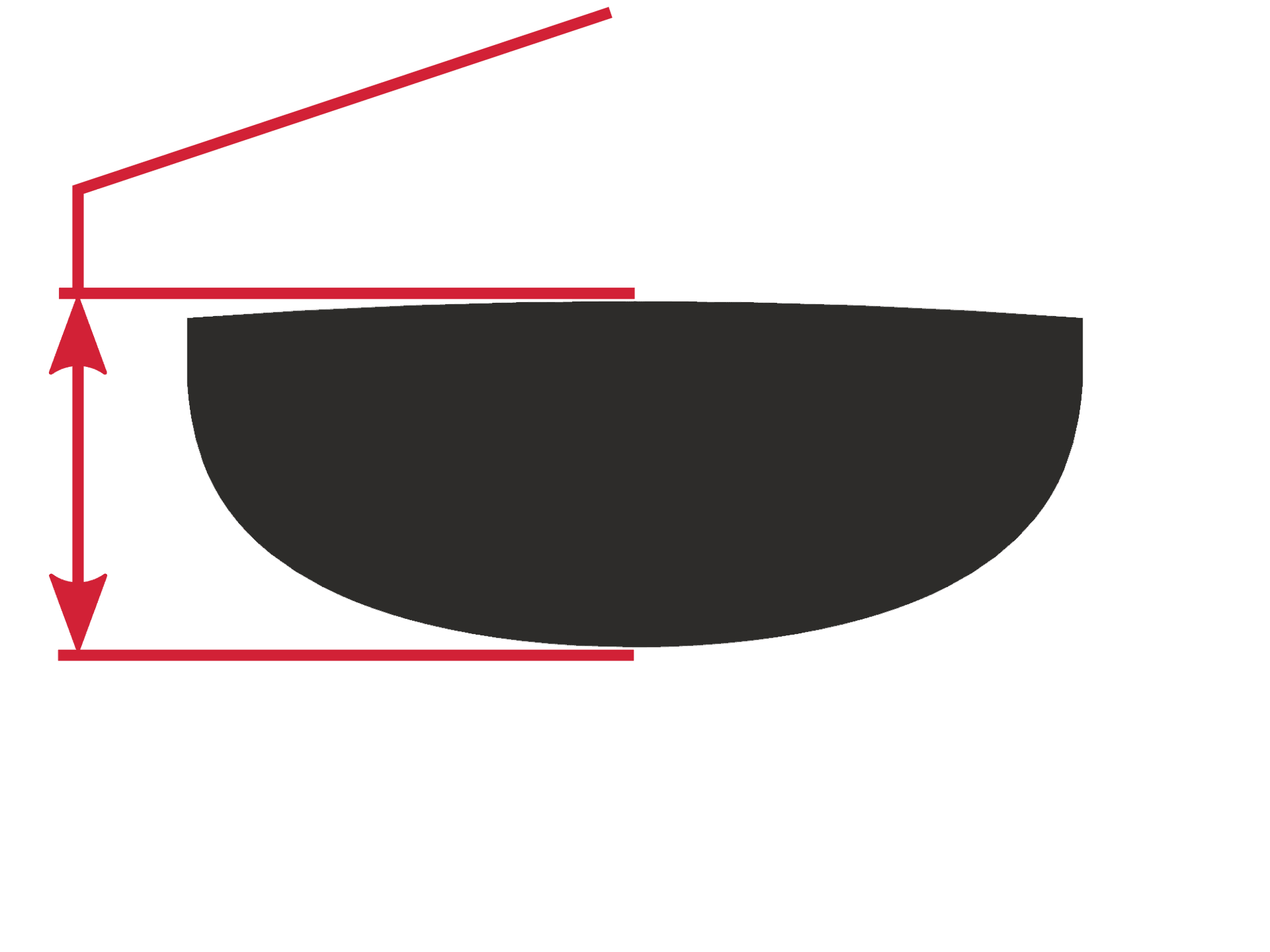

Neck shape at neck end
